EG3/EG4/EG5/EG6 · 1991–1995 · EU

Honda Civic V hatchback (EG)

Car colour

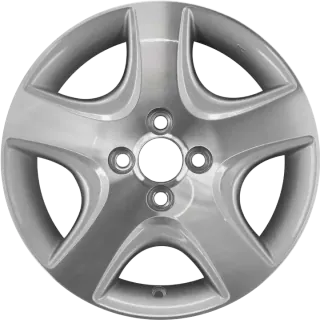

Civic 15″ Machined CharcoalALY63868
  • Diameter 15″
  • Width 6J
  • Offset ET45
Fits

  • ALY63868
  • ALY63852
  • ALY63988
  • ALY64004
  • ALY64036
  • ALY63831
  • ALY63795
  • ALY63869
  • ALY63874
  • ALY63828
  • ALY71717
  • ALY63756
  • ALY63791
  • ALY63796
  • ALY63793
  • ALY63845
  • ALY63747
Hub 4x100, bore 56.1 mm: how the size bands were set
  • 13″: 175/70 R13 · 5–5.5J · ET40–50. EUDM 1.5i OE 175/70 R13 82S on 5Jx13 ET45 (avtoreference.com EUDM table; wheel-size.com EUDM). EU 1.5 LSi on 175/70 R13 (automobile-catalog.com). Width +0.5J and offset ±5 mm are assumed, verify before buying.
  • 14″: 185/60 R14 · 5–5.5J · ET40–50. EUDM 1.6 ESi OE 185/60 R14 82H on 5Jx14 ET45 (avtoreference.com EUDM table; wheel-size.com EUDM). Width +0.5J and offset ±5 mm are assumed, verify before buying.
  • 15″: 195/55 R15 · 5.5–6J · ET40–50. EUDM 1.6 VTi OE 195/55 R15 84V on 5.5Jx15 ET45 (avtoreference.com EUDM table; wheel-size.com EUDM); automobile-catalog.com gives 195/55 R15 V for the EU 1.6 VTi. Width +0.5J and offset ±5 mm are assumed, verify before buying.
  • EU hatch codes per Wikipedia: EG3 1.3 DX, EG4 1.5 LSi/VEi, EG5 1.6 ESi, EG6 1.6 VTi.
  • The VTi (EG6, B16A2) has larger front brakes and rear discs: 13-inch wheels from base trims may not clear its calipers. PCD stays 4x100.
  • Default diameter 13 is assumed the commonest (base 1.3/1.5 trims); no EU sales-mix source was found.
  • Fit means the published size matches. Still check brake-caliper clearance against the spoke profile.
  • All catalogue fitment is US-market (factorywheelwarehouse.com); EU/JDM-only designs are missing for now.
  • Sources: wheel-size.com, avtoreference.com, wheel-fitment.com, automobile-catalog.com, automobile-catalog.com, boltpattern.net, en.wikipedia.org.
  • Data confidence: high: EU-tagged OE rim and tyre data per trim; PCD and bore confirmed by several sources.

Wheels for the Civic V hatch

Rarity tiers

Rarity counts the model-years Honda fitted a design to at the factory. One model-year makes it Covert.

Counts: all 251 designs

  1. Covert1 model-year12
  2. Classified2–3 model-years80
  3. Restricted4–6 model-years106
  4. Mil-Spec7–10 model-years36
  5. Industrial11–20 model-years7
  6. Consumer21+ model-years10
