FK1/FK2/FK3/FN1/FN3/FN4 · 2005–2011 · EU

Honda Civic VIII hatchback (FK/FN)

Car colour

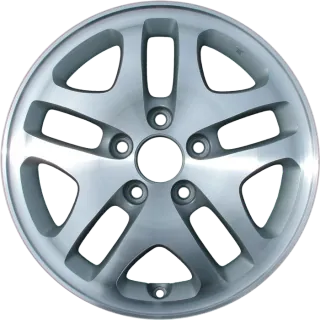

Accord 16″ Machined SilverALY63823
  • Diameter 16″
  • Width 6.5J
  • Offset ET55
Fits

  • ALY63823
  • ALY63888
  • ALY63907
  • ALY64000
  • ALY64078
  • ALY64080
  • ALY63777
  • ALY63857
  • ALY63858
  • ALY64046
  • ALY63904
  • ALY64047
  • ALY98447
  • ALY98121
  • ALY63151
  • ALY63152
  • ALY64060
  • ALY63765
  • ALY64015
  • ALY64056
  • ALY71738
  • ALY63935
  • ALY64076
  • ALY64050
  • ALY64075
  • ALY63938
  • ALY63863
Hub 5x114.3, bore 64.1 mm: how the size bands were set
  • 16″: 205/55 R16 · 6.5–7J · ET50–60. Honda EU spec: 16x6.5J with 205/55 R16 (ultimatespecs and auto-data: 205/55 R16 on the 1.4). ET55 5x114.3 from UK breaker listings for a Mk8 FN/FK 6.5Jx16 alloy (eBay UK, partsgateway). Width +0.5J and offset ±5 mm are assumed, verify before buying.
  • 17″: 225/45 R17 · 7–7.5J · ET50–60. Honda EU spec: 17x7.0JJ with 225/45 R17 (Type S and upper grades). ET55 from an eBay UK listing for a Mk8 FN/FK 7Jx17 ET55 Civic Sport alloy. Width +0.5J and offset ±5 mm are assumed, verify before buying.
  • FN2 Type R uses 5x120 with 18x7.5JJ, 225/40 R18 and 300 mm front discs; not covered.
  • No source confirms a 15-inch factory size for the EU hatch: check 15-inch wheels against the registration document.
  • This is the Swindon-built EU hatch; the FD/FA saloon has a 2700 mm wheelbase and different OE wheels.
  • Fit means the published size matches. Still check brake-caliper clearance against the spoke profile.
  • All catalogue fitment is US-market (factorywheelwarehouse.com); EU/JDM-only designs are missing for now.
  • Sources: hondanews.eu, auto-data.net, ultimatespecs.com, ebay.co.uk, partsgateway.co.uk, ebay.co.uk, hondacodes.wordpress.com, en.wikipedia.org, jp-time.club.
  • Data confidence: medium: widths, tyres and wheelbase from Honda EU; offsets from UK breaker listings; centre bore from a secondary source.

Wheels for the Civic VIII hatch

Rarity tiers

Rarity counts the model-years Honda fitted a design to at the factory. One model-year makes it Covert.

Counts: all 251 designs

  1. Covert1 model-year12
  2. Classified2–3 model-years80
  3. Restricted4–6 model-years106
  4. Mil-Spec7–10 model-years36
  5. Industrial11–20 model-years7
  6. Consumer21+ model-years10

Compare wheels
